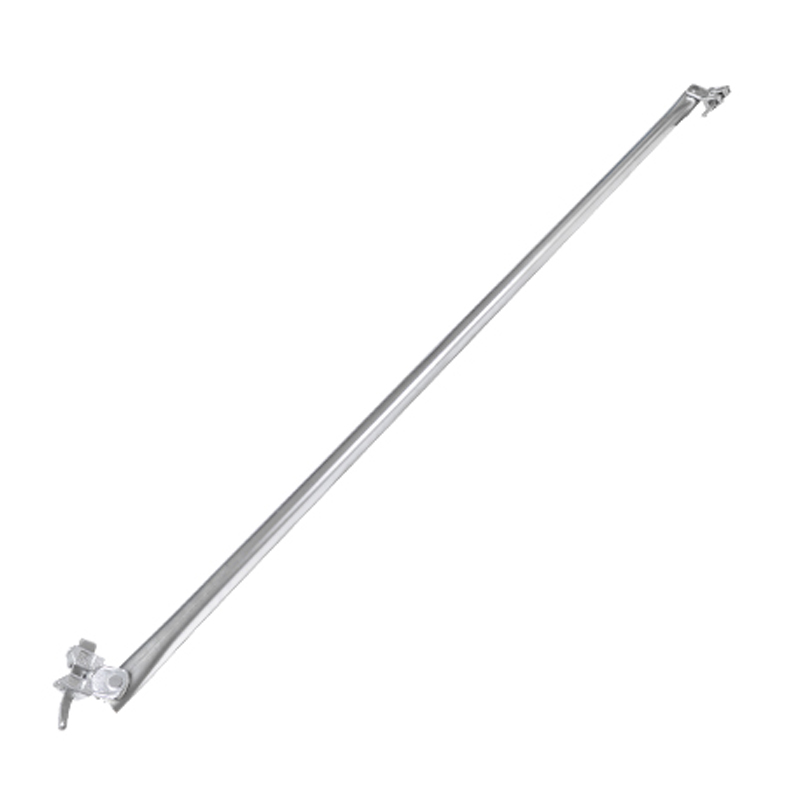

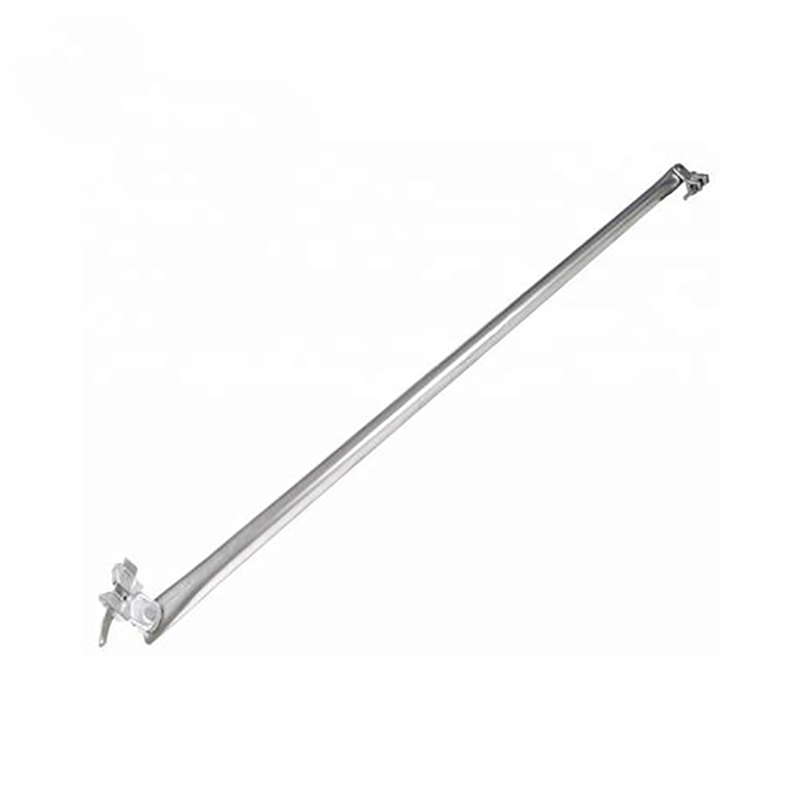

Diagonal brace --Ring-lock Scaffolding
Diagonals are the essential diagonal scaffolding braces used to stabilize the scaffolding and are offen seen on the outside facing of the ringlock scaffolding system.The diagonal brace is required to stabilize the scaffold and to stiffen the system so that is won't rack and sway.
| Specification of Diagonal braces | ||
| Vertical length | Horizontal ledger length | Diagonal brace length |
| 500mm | 732mm | 789.2mm |
| 500mm | 1088mm | 1081.8mm |
| 500mm | 1286mm | 1259.2mm |
| 500mm | 1400mm | 1364.0mm |
| 500mm | 1572mm | 1524.7mm |
| 500mm | 2072mm | 2002.8mm |
| 500mm | 2572mm | 2489.6mm |
| 500mm | 3072mm | 2980.8mm |
| 1000mm | 732mm | 1185.1mm |
| 1000mm | 1088mm | 1394.8mm |
| 1000mm | 1286mm | 1535.5mm |
| 1000mm | 1400mm | 1622.1mm |
| 1000mm | 1572mm | 1758.8mm |
| 1000mm | 2072mm | 2185.3mm |
| 1000mm | 2572mm | 2638.8mm |
| 1000mm | 3072mm | 3105.7mm |
| 1500mm | 732mm | 1640.4mm |
| 1500mm | 1088mm | 1796.5mm |
| 1500mm | 1286mm | 1907.2mm |
| 1500mm | 1400mm | 1977.3mm |
| 1500mm | 1572mm | 2090.5mm |
| 1500mm | 2072mm | 2459.2mm |
| 1500mm | 2572mm | 2868.5mm |
| 1500mm | 3072mm | 3303.2mm |
| 2000mm | 732mm | 2116.4mm |
| 2000mm | 1088mm | 2239.0mm |
| 2000mm | 1286mm | 2328.3mm |
| 2000mm | 1400mm | 2385.9mm |
| 2000mm | 1572mm | 2480.2mm |
| 2000mm | 2072mm | 2797.2mm |
| 2000mm | 2572mm | 3162.6mm |
| 2000mm | 3072mm | 3561.1mm |
